Henan Icleanlotus Environmental Technology Co., Ltd. specializes in supplying a comprehensive range of wastewater treatment equipment, including submersible mixers, wastewater aeration systems, mechanical bar screens, polymer dosing systems, and dissolved air flotation machines. Our equipment is designed for diverse applications, such as industrial wastewater treatment, food and beverage processing effluent management, oil and gas industry wastewater, textile and dyeing industry wastewater, and stormwater treatment.
Customized Solutions
We provide fully customized wastewater treatment solutions. Whether it’s submersible mixers, aeration systems, or flotation machines, we can tailor the design to your exact requirements. Just provide your specifications, and we’ll send you layouts and technical drawings (DWG/PDF) to ensure the product meets your project needs.
Order Tracking
Our dedicated team closely monitors every order and guarantees that the equipment reaches you on schedule. We keep you updated throughout the process to ensure complete transparency.
Reliable After-Sales Support
We provide a one-year warranty for all products, along with a detailed operation manual to guide you through setup and maintenance. If any maintenance notices arise, we notify you in advance to help maintain smooth operation.
Experienced and Professional Team
Our team has extensive expertise in wastewater treatment systems. We assist clients throughout the entire project lifecycle, from selection to installation, ensuring optimal performance and long-term reliability.
-
![Daf Dissolved Air Flotation System]()
Daf Dissolved Air Flotation System1. Daf dissolved air flotation system is particularly suitable for solid-liquid separation of transporting flocs and small particles. 2. There are many micro bubbles, which can ensure the airread more -
![Flocculant Dosing System]()
Flocculant Dosing System1. Flocculant dosing system often used together with slurry dewater machine. 2. Polyacrylamide is fully dissolved, with good flocculation effect and high efficiency.read more -
![Flocculant Mixing System]()
Flocculant Mixing Systemflocculant mixing systemflocculant mixing system with three-tank integrated continuous preparation, easy to operate and maintainread more -
![Screw Press Wastewater Treatment]()
Screw Press Wastewater Treatmentscrew press wastewater treatmentscrew press wastewater treatment is suitable for municipal sewage, tap water, industrial wastewater, food, beverage, animal husbandry, chemical industry, machineryread more -
![Flocculation Plant]()
Flocculation Plantflocculation plantflocculation plant takes up a small space and is used for dissolving, stirring and adding coagulants, coagulant aids and disinfectants in water supply projects.read more -

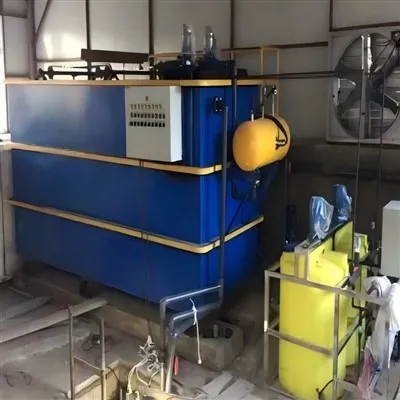

![Daf Plant Water Treatment]()
Daf Plant Water Treatmentdaf plant water treatmentdaf plant water treatment is particularly suitable for the separation of colloidal suspended solids produced by dry aluminum salt and iron salt flocculants.read more -
![Grit Chamber Wastewater]()
Grit Chamber Wastewatergrit chamber wastewatergrit chamber wastewater is mainly used for pre-treatment in sewage treatment plants, before the primary sedimentation tank and after the screen, to remove larger inorganicread more -
![Chemical Dosing Equipment]()
Chemical Dosing Equipmentchemical dosing equipmentchemical dosing equipment uses a spiral feeder to add powder, which can be adjusted in speed to ensure uniform and dispersed feeding with an accuracy within 1%.read more -
![Sludge Dewatering Unit]()
Sludge Dewatering Unitsludge dewatering unitsludge dewatering unit integrates concentration, filtration and dehydration, with small size and footprint, light weight, low power consumption and high mud cake outputread more -
![Daf System For Water Treatment]()
Daf System For Water Treatmentdaf system for water treatmentThe bubbles produced by daf system for water treatment are small, with a particle size of usually 20~40um. They adhere firmly to the flocculants and can achieve a goodread more -
![Dissolved Air Flotation Equipment]()
Dissolved Air Flotation Equipmentdissolved air flotation equipmentDissolved air flotation equipment can be widely used in water treatment projects in oil refining, papermaking, textile, printing and dyeing, electroplating, metalread more -
![Flocculant Preparation Station]()
Flocculant Preparation Stationflocculant preparation station Flocculant preparation station with high degree of automation, the system is controlled by PLC Double screw feeder for powder feedingread more
Specification of Solid Liquid Separator
|
Sludge type |
Mixed sludge/Aerobic digestion/municipal sludge |
Raw wastewater/Waste actived sludge/Chemically precipitated sludge |
|
|
Sludge concentration(TS) |
3.00% |
0.20% |
1.00% |
|
ICL-131 |
26kg-DS/h (0.87m³/h) |
4kg-DS/h (2.0m³/h) |
6kg-DS/h (0.6m³/h) |
|
ICL-132 |
52kg-DS/h (1.73m³/h) |
8kg-DS/h (4.0m³/h) |
12kg-DS/h (1.2m³/h) |
|
ICL-133 |
72kg-DS/h (2.61m³/h) |
12kg-DS/h (6.0m³/h) |
18kg-DS/h (1.8m³/h) |
|
ICL-201 |
52kg-DS/h (1.73m³/h) |
8kg-DS/h (4.0m³/h) |
12kg-DS/h (1.2m³/h) |
|
ICL-202 |
104kg-DS/h (3.47m³/h) |
16kg-DS/h (8.0m³/h) |
24kg-DS/h (2.4m³/h) |
|
ICL-203 |
156kg-DS/h (5.20m³/h) |
24kg-DS/h (12.0m³/h) |
36kg-DS/h (3.6m³/h) |
|
ICL-301 |
130kg-DS/h (4.33m³/h) |
20kg-DS/h (10.0m³/h) |
30kg-DS/h (3.0m³/h) |
|
ICL-302 |
260kg-DS/h (8.67m³/h) |
40kg-DS/h (20.0m³/h) |
60kg-DS/h (6.0m³/h) |
|
ICL-303 |
390kg-DS/h (13.0m³/h) |
60kg-DS/h (30.0m³/h) |
90kg-DS/h (9.0m³/h) |
|
ICL-304 |
520kg-DS/h (17.3m³/h) |
80kg-DS/h (40.0m³/h) |
120kg-DS/h (12.0m³/h) |
|
ICL-351 |
260kg-DS/h (8.67m³/h) |
40kg-DS/h (20.0m³/h) |
60kg-DS/h (6.0m³/h) |
|
ICL-352 |
520kg-DS/h (17.3m³/h) |
80kg-DS/h (40.0m³/h) |
120kg-DS/h (12.0m³/h) |
|
ICL-353 |
780kg-DS/h (26.0m³/h) |
120kg-DS/h(60.0m³/h) |
180kg-DS/h (18.0m³/h) |
|
ICL-354 |
1040kg-DS/h (34.68m³/h) |
160kg-DS/h(80.0m³/h) |
240kg-DS/h (24.0m³/h) |
|
ICL-401 |
442kg-DS/h (16.0m³/h) |
70kg-DS/h (35.0m³/h) |
100kg-DS/h (10m³/h) |
|
ICL-402 |
884kg-DS/h (29.5m³/h) |
135kg-DS/h(67.5m³/h) |
200kg-DS/h (20.0m³/h) |
|
ICL-403 |
1326kg-DS/h (44.2m³/h) |
200kg-DS/h(100m³/h) |
300kg-DS/h (30.0m³/h) |
|
ICL-404 |
1768kg-DS/h (58.9m³/h) |
266kg-DS/h(133m³/h) |
400kg-DS/h (40.0m³/h) |
Types of Solid Liquid Separator
The solid liquid separators produced by our company mainly include the following types
Sludge Clarifier
The sludge clarifier is a type of suction scraper driven by a central vertical frame. When the central vertical frame rotates, the activated sludge settled on the surface of the pool bottom is collected and discharged into the activated sludge well through the hole on one side of the suction pipe under the action of the liquid level difference.
Rotating Sludge Scraper
The rotating sludge scraper is used for secondary settling tanks, wastewater flows out from the bottom of the tank through the upper part of the central support pier, and after being distributed by the stabilizing cylinder, it flows radially towards the water collection tanks around the pool.
Polymer Dosing System
The polymer dosing system adopts time program control, which does not require the support of instruments. Firstly, the automatic dosing cycle, dosage, dosing time, and dosing frequency are set according to the operation needs of the system.
Solid Liquid Separator Machine
The solid liquid separator machine is mainly used for wastewater pretreatment. Wastewater first enters through an inlet pipe, overflows through a water tank, and then filters floating and suspended solids from its fine screen surface. Floating and suspended solids slowly and automatically slide down under the action of water flow and gravity, and enter the collection box.
Features of Solid Liquid Separator
The body is compact, occupies a small area, and is flexible and convenient to install. It can be used as a single unit or multiple units can be connected in parallel and operate independently of each other, saving civil engineering resources. Low electrical load and high separation efficiency.
Not easily blocked; Good filtering effect can significantly reduce the concentration of pollutants in wastewater and lower the subsequent treatment cost of wastewater. Strong corrosion resistance, high reliability, and long service life.
The processing capacity of a single unit can reach 10-300m3/h, with a large mesh opening rate and gaps ranging from 0.3mm to 3.0mm. When the sieve spacing increases, the amount of treated water increases relatively.
Applications of Solid Liquid Separator
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
Animal Waste Management
It can be used to process cow dung, pig manure, chicken manure, and more.
Agriculture Waste Management
The separator is widely used to process organic waste, such as coconut shells or fibers, corn stalks, straw, grass, and more.
Food Processing Industry
The machine is used to process food waste, seafood, and spent grains, extract juice from fruit and vegetables/ wheatgrass, napier grass, separating solids from liquid.
Wastewater Treatment Plants
In industrial and municipal wastewater treatment, our separators dewater sludge, reducing the volume of waste, which lowers transportation and disposal costs.
Paper Industry
In the pulp and paper industry, screw separators can reduce water content in paper pulp to improve the pulp quality.
Common Technologies of Solid Liquid Separators
Filtration
Involves passing a mixture through a filter medium that traps solid particles.
Centrifugation
Utilizes centrifugal force to separate solids based on density differences.
Gravity Settling
Relies on the natural settling of solids under the influence of gravity.
Flotation
Employs bubbles to buoy particles to the surface for removal.
Precautions for Using Solid Liquid Separator
Before using the solid liquid separator, it is necessary to ensure that the sludge has undergone appropriate pretreatment, such as dosing and flocculation, to meet the conditions for entering the screw machine for dewatering.
During the operation of the equipment, it is necessary to regularly inspect and maintain the equipment to ensure its normal operation and extend its service life.
According to the characteristics of wastewater in different industries, it may be necessary to adjust the operating parameters and configuration of equipment to achieve the best solid-liquid separation effect.
Packaging and Shipping
|
Packaging |
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
Shipping |
We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc. |
Our Factory
When you need fine bubble disc diffuser, layout will be sent to you. When you want to know more about our submersible agitator, after selecting models, layout and drawings such as DWG or PDF can be sent to you. So you can be sure whether the product meets your requirements.
As one of the most professional solid liquid separator manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy solid liquid separator for sale here from our factory. Contact us for customized service.
