Products Description
The water agitator for ponds is a new type of mixing equipment designed for square or circular tanks with large surface areas and deep depths. Based on the submersible mixer, its horizontal structure has been innovatively transformed into a vertical circulation structure, improving overall design, technical performance, mixing efficiency, service area, and applicability. It offers the advantages of long service life, low noise, easy installation and maintenance, low initial investment, and low operating costs.

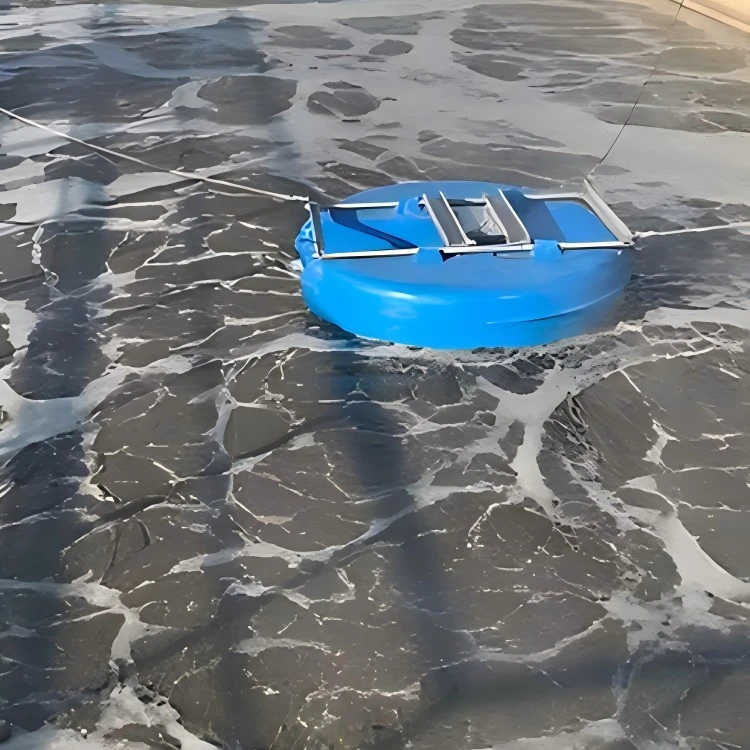

The water agitator for ponds is easy to install using cable fixation. This method is the simplest: one end of the cable (steel wire rope or nylon rope) is attached to the lifting ring screw on the float, while the other end is fixed to the pool or pond wall. To accommodate water level changes in SBR and other processes, a matching stainless steel spring rope can handle a water level fluctuation of up to 3 meters. During operation, the agitator can slightly rotate to adjust the direction of water flow within a small range, ensuring more even mixing of the sludge.
Specification
|
Model |
Power(kw) |
Current(A) |
Service area(㎡) |
|
1100ICL-2.2-87 |
2.2 |
5.5 |
170 |
|
1800ICL-3-56 |
3 |
6.5 |
225 |
|
1800ICL-4-56 |
4 |
9 |
300 |
|
1800ICL-5.5-63 |
5.5 |
11 |
400 |
|
2500ICL-7.5-56 |
7.5 |
15 |
625 |
Feature
The pond agitator creates a large turbulent flow area with a wide effective range, providing gentle and uniform mixing. It effectively reduces or even eliminates dead zones without damaging the flocculent structure or microbial flocs of activated sludge.
It uses a large circulation flow design to fully mix the sludge, suitable for water depths of 2–9 m and coverage areas of 100–800 m².
The agitator is driven by a submersible motor that is coaxial with the mixer. It operates fully underwater, ensuring good cooling, a wide applicable depth range, and no secondary pollution such as noise. Its mechatronics-integrated structure reduces mechanical losses and improves unit efficiency.
The submersible motor features two series-connected mechanical seals, along with multiple auxiliary sealing systems, ensuring reliable motor sealing.
The motor is equipped with multiple alarm and protection systems, including oil leakage, stator overheating, phase loss, and short circuit detection, making the product safer and more reliable.
Installation is convenient and flexible. Multiple installation methods are available. For floating installations, no specialized platform or factory is required, reducing overall investment and simplifying installation, operation, and maintenance.
The agitator is suitable for pools of any shape or size. It can be installed as a single unit or in multiples per pool, and the quantity or position can be adjusted at any time according to process requirements. It supports both centralized automatic control and independent operation, allowing for convenient management.
With low-speed operation, a wide service range, high hydraulic efficiency, and uniform mixing, it is suitable for regulating tanks in various sewage treatment projects, as well as anaerobic or facultative tanks.
Application
The pond mixer is suitable for use in regulating tanks of various sewage treatment projects and can also be applied in anaerobic or facultative tanks.
FAQ
Q: 1. Can you advise the suitable model of water agitator for pond?
A: Sure, please tell us your tank or pond dimension.
Q: 2. Is it easy to install water agitator for pond?
A: Yes, detailed manual will be sent promptly.
